How to Connect a Car Subwoofer to a Soundbar

Table of Contents

  • What to Choose – An Active Subwoofer or A Passive One?
  • Where to Install the Subwoofer?
  • How to Connect a Subwoofer?
  • Correct Connection of a Subwoofer
  • Connecting Two Subwoofers
  • Connecting A Subwoofer to A Stereo
  • Connecting to A Soundbar
  • Automatic Connection to Subwoofer
  • That’s It!

What to Choose – An Active Subwoofer or A Passive One?

To understand the necessity of using an active or passive subwoofer, you need to find out what the advantages of each option are. For example:

  • A passive sub is a single unit construction, with several speakers encased in it. In order to reproduce low-frequency sound, the subwoofer must be connected to an amplifier. The advantage of the passive version is relatively low cost. Minus in the mandatory additional space due to the need to connect the connecting structures – amplifier and filter;
  • Active subwoofer is a ready-to-connect speaker unit with an amplifier and a frequency filter. The undoubted advantages of this device are that it does not require additional space, it has a wide range of settings, and it is easy to connect it to the OEM car stereo. But its cost is significantly higher.

As you can see, we have two equivalent options. Therefore, before installing a subwoofer, it makes sense to imagine exactly what we want to get as a result, how much money we are going to sacrifice, and how it will be possible to place a subwoofer in a car.

Where to Install the Subwoofer?

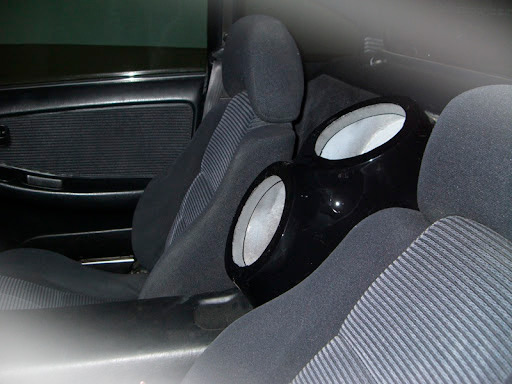

Where to Install the Subwoofer

Small trunk space can be a problem for a subwoofer installation. Especially for a passive model. This situation is often found in sedans. In cars of this type, the best place to install a subwoofer is in the rear shelf or armrests. Minivan or hatchback has enough space in the trunk, so the question of finding a place for a subwoofer – disappears by itself.

How to Connect a Subwoofer?

The subwoofer is one of the important components of a multi-component speaker system, its presence is obligatory in a set of speaker systems for home cinema. Let’s understand what the subwoofer is and define its function and purpose. The main classifications are: a) active subwoofer, b) passive subwoofer.

The subwoofer is a loudspeaker designed to reproduce low frequencies, which are at the lower threshold of human ear sensitivity. The term “Subwoofer” is used to describe a system with a low-frequency head in a separate enclosure. I would not say that the subwoofer is one of the most important components of a speaker system, outlining the lower, velvety part of the sound spectrum.

Correct Connection of a Subwoofer

Any amplifier/receiver is usually equipped with a special RCA output that is designed to connect subwoofers. Some of them have two outputs. However, usually, one output is used, as the second one is usually intended for making it possible to connect a second subwoofer. To connect the subwoofer, you need an RCA cable to make its connection to one RCA input available on the receiver. Some subwoofers have a speaker with a double coil, the coil itself with two windings. There is a separate amplifier connected to each of the windings. If your receiver has one RCA jack for subwoofer connection, then the receiver (amplifier) is connected with the twin ends of the Y-cable (1 RCA to 2 RCA) to the two-line inputs of the subwoofer (its inputs are paralleled).

Connecting Two Subwoofers

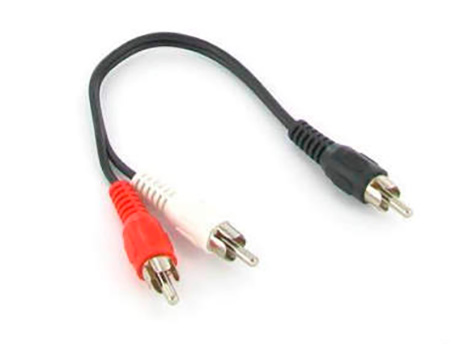

Connecting Two SubwoofersIf you are using 2 subwoofers, you need to connect them to the line output of the amplifier, using a Y-adapter RCA or connect to the output terminals of the amplifier (receiver) in parallel with the front speakers.

Connecting A Subwoofer to A Stereo

1. A modern car, stuffed with electronic devices, having a high-voltage ignition system, is a source of electromagnetic interference. Analog electrical signals are very sensitive to them. Therefore, when selecting a cable for audio signal transmission, pay attention to coaxial shielded wires. The shielding braid of the cable connected to the car body reliably protects the center wire from induced interference.

2. When buying a wire, you should not choose the cheapest one. Enterprising Asian manufacturers often sell aluminum wire under the guise of copper cable, which is coated with a thin layer of copper using modern technology. Such a wire looks very decent, you cannot tell it from a wire made of solid copper. If you can’t bite off the tip and examine the cut, you can compare the weight of the wire that is questionable. with the same length and cross-section, the aluminum wire is much lighter than the copper.

3. Finished interconnecting wire kits always have a control cable. Its role is as follows. The auto speaker amplifier is usually located in close proximity to the subwoofer or integrated into it, if the subwoofer is active. The amplifier is powered by separate wires. To make it turn on with the stereo, there is a special input for the control plus, which is fed to the amplifier from the output of the stereo when it is turned on, usually, a blue wire in the harness, labeled remote.

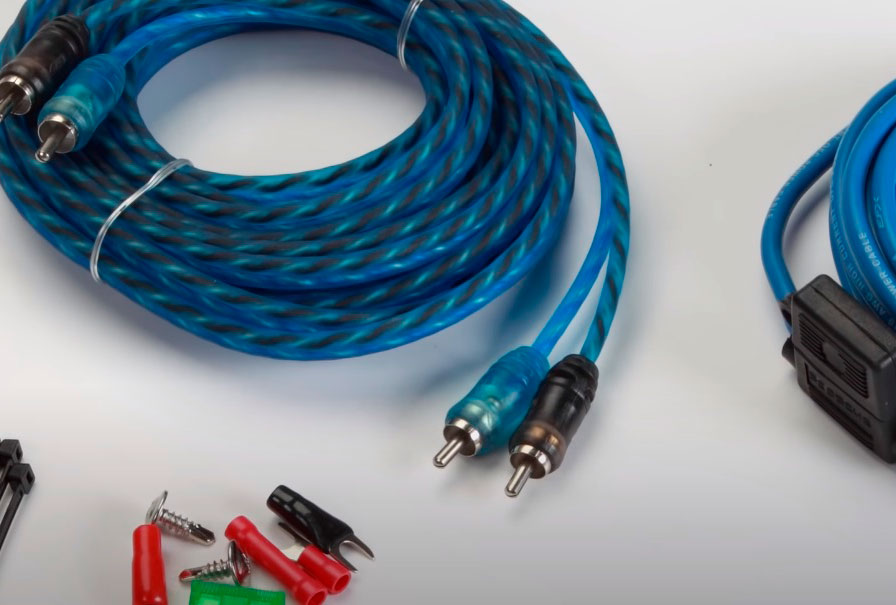

Connecting A Subwoofer to A Stereo

Connecting to A Soundbar

To connect the interconnect wires, the wires in your boombox usually have two tulip outlets labeled SW. If there are no such outputs, you can find information on how to connect a subwoofer to the OEM stereo here. After performing the above procedures, it remains only to connect the wires transmitting the sound signal from the amplifier to the subwoofer, the sound after amplification has a lot of power, so the cross-section of the wires must be appropriate.

Automatic Connection to Subwoofer

Subwoofer and subwoofer connection is pre-set at the factory and if the first unit and the subwoofer are switched on, they will be connected automatically. When the units are interconnected, the blue link light on the subwoofer (LINK) stops blinking and stays on.

That’s It!

For many drivers, listening to music while driving is not just a way to brighten up the time, but something much bigger. To create high-quality best audio for your car with a soundbar, audiophiles are ready to sacrifice a lot of money and install the most modern equipment. An expensive car stereo solves many things, but without a properly selected amplifier, speakers, and, of course, a subwoofer, it is just a beautiful thing. So today we looked at exactly how you can connect a subwoofer to a soundbar and I hope this article was useful for you.
